遊戲規則：跟一般大家認知的踩地雷是一樣的，不過我的過關條件則是要把每個炸彈都標記出來才算過關。
操作方法：滑鼠左鍵為點開、滑鼠右鍵為標記炸彈(當被標記為炸彈時則無法用左鍵點開，必須要再按一下右鍵解除標記才可以使用左鍵點開)、滑鼠滾輪為選單(選單分為：簡易、正常、困難、離開遊戲)。
遊戲畫面：

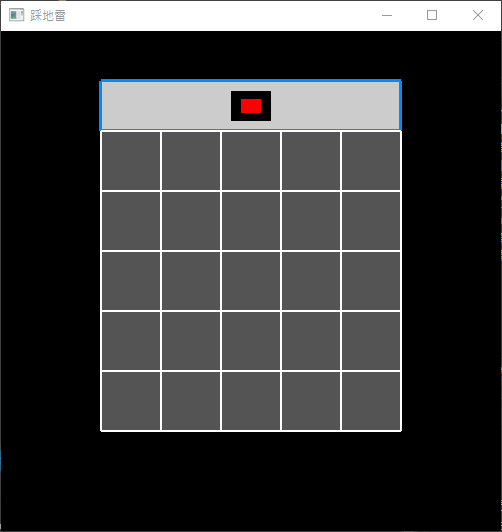

《簡易》

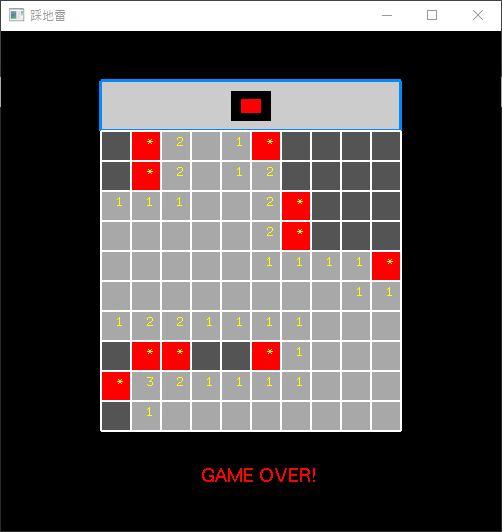

《正常》

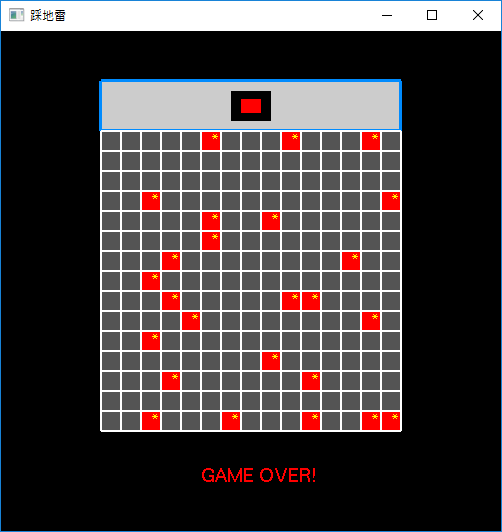

《困難》
程式碼：
This file contains bidirectional Unicode text that may be interpreted or compiled differently than what appears below. To review, open the file in an editor that reveals hidden Unicode characters.
Learn more about bidirectional Unicode characters
| /******************** | |
| Computer Graphics | |
| Author：ZHANG XIN-XIANG | |
| Time：2017/1/17 | |
| ********************/ | |
| #include <GL/glut.h> | |
| #include<iostream> | |
| #include<cmath> | |
| #include "minesweeper.h" | |
| using namespace std; | |
| //color define | |
| #define smallCellColor glColor3f(0.658824f, 0.658824f, 0.658824f);; | |
| #define cellBlockColor glColor3f(1,0,0); | |
| #define textColor glColor3f(1, 1, 0); | |
| #define defaultColor glColor3f(0.329412f, 0.329412f, 0.329412f); | |
| int edge=10 ; //設定格數為edge*edge | |
| int bombnumber = 10; | |
| GLfloat cell=300/edge; | |
| int numPosition = cell / 2; | |
| GLsizei wh = 500, ww = 500; | |
| minesweeper n(edge, bombnumber); //第一個參數為edge，第二個參數為炸彈數 | |
| void reset(int new_edge, int new_bombnumber) | |
| { | |
| edge = new_edge; | |
| bombnumber = new_bombnumber; | |
| cell = 300 / edge; | |
| numPosition = cell / 2; | |
| glClear(GL_COLOR_BUFFER_BIT | GL_DEPTH_BUFFER_BIT); | |
| glClearColor(0.0, 0.0, 0.0, 1.0); | |
| glFlush(); | |
| n.reset(edge, bombnumber); | |
| glutPostRedisplay(); | |
| } | |
| void drawLine() | |
| { | |
| glColor3f(1.0f, 1.0f, 1.0f); | |
| glLineWidth(2); | |
| glBegin(GL_LINES); | |
| for (float i = 100; i <= 400; i += cell) | |
| { | |
| glVertex2f(i, 100); | |
| glVertex2f(i, 400); | |
| glVertex2f(100, i); | |
| glVertex2f(400, i); | |
| } | |
| glEnd(); | |
| glFlush(); | |
| } | |
| void drawCell(int x1, int y1) { | |
| float size = cell; | |
| glBegin(GL_POLYGON); | |
| glVertex2f(x1, y1); | |
| glVertex2f(x1, y1 + size); | |
| glVertex2f(x1 + size, y1 + size); | |
| glVertex2f(x1 + size, y1); | |
| glEnd(); | |
| glFlush(); | |
| } | |
| void numFont(int n) { | |
| switch (n) { | |
| case -1: | |
| glutBitmapCharacter(GLUT_BITMAP_8_BY_13, '*'); | |
| break; | |
| case 0: | |
| glutBitmapCharacter(GLUT_BITMAP_8_BY_13, '0'); | |
| break; | |
| case 1: | |
| glutBitmapCharacter(GLUT_BITMAP_8_BY_13, '1'); | |
| break; | |
| case 2: | |
| glutBitmapCharacter(GLUT_BITMAP_8_BY_13, '2'); | |
| break; | |
| case 3: | |
| glutBitmapCharacter(GLUT_BITMAP_8_BY_13, '3'); | |
| break; | |
| case 4: | |
| glutBitmapCharacter(GLUT_BITMAP_8_BY_13, '4'); | |
| break; | |
| case 5: | |
| glutBitmapCharacter(GLUT_BITMAP_8_BY_13, '5'); | |
| break; | |
| case 6: | |
| glutBitmapCharacter(GLUT_BITMAP_8_BY_13, '6'); | |
| break; | |
| case 7: | |
| glutBitmapCharacter(GLUT_BITMAP_8_BY_13, '7'); | |
| break; | |
| case 8: | |
| glutBitmapCharacter(GLUT_BITMAP_8_BY_13, '8'); | |
| break; | |
| default: | |
| break; | |
| } | |
| glFlush(); | |
| } | |
| void Display() | |
| { | |
| glClear(GL_COLOR_BUFFER_BIT); | |
| glColor3f(0.8f, 0.8f, 0.8f); | |
| glBegin(GL_POLYGON); | |
| glVertex2f(100, 400); | |
| glVertex2f(100, 450); | |
| glVertex2f(400, 450); | |
| glVertex2f(400, 400); | |
| glEnd(); | |
| glLineWidth(3); | |
| glColor3f(0.0f, 0.5469f, 0.9961f); | |
| glBegin(GL_LINE_LOOP); | |
| glVertex2f(100, 400); | |
| glVertex2f(100, 450); | |
| glVertex2f(400, 450); | |
| glVertex2f(400, 400); | |
| glEnd(); | |
| glColor3f(0.329412f, 0.329412f, 0.329412f); | |
| glBegin(GL_POLYGON); | |
| glVertex2f(100, 100); | |
| glVertex2f(400, 100); | |
| glVertex2f(400, 400); | |
| glVertex2f(100, 400); | |
| glEnd(); | |
| glColor3f(1.0f, 1.0f, 1.0f); | |
| glLineWidth(2); | |
| glBegin(GL_LINES); | |
| for (float i = 100; i <= 400; i += cell) | |
| { | |
| glVertex2f(i, 100); | |
| glVertex2f(i, 400); | |
| glVertex2f(100, i); | |
| glVertex2f(400, i); | |
| } | |
| glEnd(); | |
| glColor3f(0.0f, 0.0f, 0.0f); | |
| glBegin(GL_POLYGON); | |
| glVertex2f(230, 410); | |
| glVertex2f(230, 440); | |
| glVertex2f(270, 440); | |
| glVertex2f(270, 410); | |
| glEnd(); | |
| glColor3f(1.0f, 0.0f, 0.0f); | |
| glBegin(GL_POLYGON); | |
| glVertex2f(240, 418); | |
| glVertex2f(240, 432); | |
| glVertex2f(260, 432); | |
| glVertex2f(260, 418); | |
| glEnd(); | |
| glFlush(); | |
| } | |
| void stamp(float x1, float y1,int state) //滑鼠控制踩格子 | |
| { | |
| int indexX = (x1 - 100) / cell, indexY = (edge-1) - (y1 - 100) / cell; | |
| if (state == 0 && !(n.isBlock(indexY,indexX)) && !(n.isPress(indexY,indexX))) { | |
| if (n.getBomb(indexY, indexX) == 0) { | |
| if (n.getBombAround(indexY,indexX)==0) { | |
| vector<position> v = n.extend(indexY, indexX); | |
| //Y軸座標轉換公式:9-(y1-100)/30=(-yy+9)*30+100。如果需印出，則row col要互換。 | |
| for (int i = 0; i < v.size(); i++) { | |
| smallCellColor; | |
| drawCell(v[i].getCol() * cell + 100, ((edge - 1) - v[i].getRow()) * cell + 100); | |
| if (n.getBombAround(v[i].getRow(), v[i].getCol()) != 0) { | |
| textColor; | |
| glRasterPos2f(v[i].getCol() * cell + 100 + numPosition, ((edge - 1) - v[i].getRow()) * cell + 100 + numPosition); | |
| numFont(n.getBombAround(v[i].getRow(), v[i].getCol())); | |
| } | |
| n.setPress(v[i].getRow(), v[i].getCol(),1); | |
| } | |
| }else { | |
| smallCellColor; | |
| drawCell(x1, y1); | |
| n.setPress(indexY, indexX, 1); | |
| textColor; | |
| glRasterPos2f(x1 + numPosition, y1 + numPosition); | |
| numFont(n.getBombAround(indexY,indexX)); | |
| } | |
| drawLine(); | |
| }else { | |
| //踩到地雷 | |
| glColor3f(1.0f, 0.0f, 0.0f); | |
| float x = 200, y = 50; | |
| char A[10] = { 'G','A','M','E',' ','O','V','E','R','!' }; | |
| glRasterPos2f(x, y); | |
| int len = (int)strlen(A); | |
| for (int i = 0; i < len; i++) | |
| { | |
| glutBitmapCharacter(GLUT_BITMAP_HELVETICA_18, A[i]); | |
| } | |
| glFlush(); | |
| //cout << "你踩到地雷了" << endl; | |
| for (int i = 0; i < edge;i++) { | |
| for (int j = 0; j < edge; j++) { | |
| if (n.getBomb(i,j) == 1) { | |
| cellBlockColor; | |
| drawCell(j * cell + 100 ,((edge - 1) - i ) * cell + 100); | |
| textColor; | |
| glRasterPos2f(j * cell + 100 + numPosition, ((edge - 1) - i) * cell + 100 + numPosition); | |
| numFont(n.getBombAround(i, j)); | |
| drawLine(); | |
| } | |
| } | |
| } | |
| n.setAllCellPress(); | |
| } | |
| }else if (state == 1 && !(n.isPress(indexY,indexX))) { | |
| if ((n.isBlock(indexY, indexX))) { | |
| //右鍵解除鎖定 | |
| defaultColor; | |
| n.setBlock(indexY, indexX, 0); | |
| }else { | |
| //設定鎖定 | |
| cellBlockColor; | |
| n.setBlock(indexY, indexX, 1); | |
| } | |
| drawCell(x1, y1); | |
| drawLine(); | |
| } | |
| glFlush(); | |
| if (n.isEnd()){ | |
| //判斷是否結束 | |
| glColor3f(1.0f, 0.0f, 0.0f); | |
| float x = 200, y = 50; | |
| char B[10] = { 'Y','O','U',' ','W','I','N','!' }; | |
| glRasterPos2f(x, y); | |
| int len = (int)strlen(B); | |
| for (int i = 0; i < len; i++) | |
| { | |
| glutBitmapCharacter(GLUT_BITMAP_HELVETICA_18, B[i]); | |
| } | |
| glFlush(); | |
| //cout << "闖關成功" << endl; | |
| n.setAllCellPress(); | |
| } | |
| } | |
| void menu(int id) | |
| { | |
| switch (id) | |
| { | |
| case 1: | |
| edge = 5; | |
| reset(edge, 5); | |
| break; | |
| case 2: | |
| edge = 10; | |
| reset(edge, 15); | |
| break; | |
| case 3: | |
| edge = 15; | |
| reset(edge, 25); | |
| break; | |
| case 4: | |
| exit(0); | |
| break; | |
| } | |
| } | |
| void init() | |
| { | |
| glViewport(0, 0, ww, wh); | |
| glMatrixMode(GL_PROJECTION); | |
| glLoadIdentity(); | |
| gluOrtho2D(0.0, (GLdouble)ww, 0.0, (GLdouble)wh); | |
| glMatrixMode(GL_MODELVIEW); | |
| glClearColor(0.0, 0.0, 0.0, 1.0); | |
| } | |
| void changeSquare(float x, float y, int state) //判斷滑鼠踩的範圍 | |
| { | |
| y = wh - y; | |
| float x1, y1; | |
| for (int i = 0; i < edge; i++) | |
| { | |
| if (x < 100 || x>400) break; | |
| if (x < 100 + cell*(i + 1)) | |
| { | |
| x1 = 100 + cell*i; | |
| break; | |
| } | |
| } | |
| for (int i = 0; i < edge; i++) | |
| { | |
| if (y < 100 || y>400) break; | |
| if (y < 100 + cell*(i + 1)) | |
| { | |
| y1 = 100 + cell*i; | |
| break; | |
| } | |
| } | |
| if (x > 100 && x < 400 && y>100 && y < 400 && (state == 0 || state == 1)) { | |
| stamp(x1, y1, state); | |
| } | |
| if (x > 220 && x < 280 && y>410 && y < 440 && (state == 0 || state == 1)) | |
| { | |
| //restart | |
| reset(edge, bombnumber); | |
| } | |
| } | |
| void mymouse(int button, int state, int x, int y) | |
| { | |
| //0:左鍵 1:右鍵 | |
| if (button == GLUT_LEFT_BUTTON && state == GLUT_UP) changeSquare(x, y, 0); | |
| if (button == GLUT_RIGHT_BUTTON && state == GLUT_UP) changeSquare(x, y, 1); | |
| } | |
| int main(int argc, char *argv[]) | |
| { | |
| n.show(); | |
| glutInit(&argc, argv); | |
| glutInitDisplayMode(GLUT_SINGLE | GLUT_RGB); | |
| glutInitWindowSize(ww, wh); | |
| glutInitWindowPosition(0, 0); | |
| glutCreateWindow("踩地雷"); | |
| glutMouseFunc(mymouse); | |
| init(); | |
| glutDisplayFunc(Display); | |
| //選單 | |
| glutCreateMenu(menu); | |
| glutAddMenuEntry("簡單", 1); | |
| glutAddMenuEntry("正常", 2); | |
| glutAddMenuEntry("困難", 3); | |
| glutAddMenuEntry("離開遊戲", 4); | |
| glutAttachMenu(GLUT_MIDDLE_BUTTON); | |
| glutMainLoop(); | |
| return 0; | |
| } |
This file contains bidirectional Unicode text that may be interpreted or compiled differently than what appears below. To review, open the file in an editor that reveals hidden Unicode characters.
Learn more about bidirectional Unicode characters
| /******************** | |
| Computer Graphics | |
| Author：SHEN ZHI-XUN | |
| Time：2017/1/17 | |
| ********************/ | |
| #include <iostream> | |
| #include <vector> | |
| #include<cmath> | |
| #include<ctime> | |
| using namespace std; | |
| class position { | |
| public: | |
| position() {} | |
| position(int row, int col) { | |
| this->row = row; | |
| this->col = col; | |
| } | |
| int getRow() { | |
| return row; | |
| } | |
| int getCol() { | |
| return col; | |
| } | |
| private: | |
| int row, col; | |
| }; | |
| class minesweeper { | |
| private: | |
| int edge = 0; | |
| int bombnumber = 0; | |
| int direct[8][2] = { { -1,-1 },{ 0,-1 },{ 1,-1 },{ -1,0 },{ 1,0 },{ -1,1 },{ 0,1 },{ 1,1 } }; //8個方向 | |
| int **bomb; //炸彈 | |
| int **bombAround; //每個cell周圍有多少炸彈 | |
| int **cellPress; //cell是否按壓 | |
| int **cellBlock; //cell是否按右鍵鎖住 | |
| public : | |
| minesweeper() {} | |
| minesweeper(int number,int bombnumber) { | |
| edge = number; | |
| this->bombnumber = bombnumber; | |
| setInit(); | |
| } | |
| void setInit() { | |
| //動態宣告陣列 | |
| bomb = new int *[edge]; | |
| bombAround = new int *[edge]; | |
| cellPress = new int *[edge]; | |
| cellBlock = new int *[edge]; | |
| for (int i = 0; i < edge; i++) { | |
| bomb[i] = new int[edge]; | |
| bombAround[i] = new int[edge]; | |
| cellPress[i] = new int[edge]; | |
| cellBlock[i] = new int[edge]; | |
| } | |
| //陣列初始化 | |
| for (int i = 0; i < edge; i++) { | |
| fill(&bomb[i][0], &bomb[i][0] + edge, 0); | |
| fill(&bombAround[i][0], &bombAround[i][0] + edge, 0); | |
| fill(&cellBlock[i][0], &cellBlock[i][0] + edge, 0); | |
| fill(&cellPress[i][0], &cellPress[i][0] + edge, 0); | |
| } | |
| //炸彈產生 | |
| srand((unsigned)time(0)); | |
| for (int i = 0; i < bombnumber;) { | |
| int row = rand() % edge, col = rand() % edge; | |
| if (bomb[row][col] == 0) { | |
| bomb[row][col] = 1; | |
| i++; | |
| } | |
| } | |
| //每個格子周圍炸彈數 | |
| for (int i = 0; i < edge; i++) { | |
| for (int j = 0; j < edge; j++) { | |
| if (bomb[i][j] == 0) { | |
| for (int k = 0; k < 8; k++) { | |
| int row = i + direct[k][0], col = j + direct[k][1]; | |
| if ((row >= 0 && row < edge) && (col >= 0 && col < edge) && bomb[row][col] == 1) | |
| bombAround[i][j]++; | |
| } | |
| } | |
| else { | |
| bombAround[i][j] = -1; | |
| } | |
| } | |
| } | |
| } | |
| vector<position> extend(int row,int col) { | |
| vector<position> v; | |
| position p(row, col); | |
| v.push_back(p); | |
| for (int i = 0; i < v.size(); i++) { | |
| if (bombAround[v[i].getRow()][v[i].getCol()] == 0) { | |
| for (int j = 0; j < 8; j++) { | |
| int tempRow = v[i].getRow() + direct[j][0], tempCol = v[i].getCol() + direct[j][1]; | |
| if ((tempRow >= 0 && tempRow < edge) && (tempCol >= 0 && tempCol < edge)) { | |
| bool flag = false; | |
| for (int k = 0; k < v.size(); k++) { | |
| if (v[k].getRow() == tempRow && v[k].getCol() == tempCol) { | |
| flag = true; | |
| break; | |
| } | |
| } | |
| if (!flag) { | |
| position p2(tempRow, tempCol); | |
| v.push_back(p2); | |
| } | |
| } | |
| } | |
| } | |
| } | |
| return v; | |
| } | |
| void setBlock(int row, int col,int n) { | |
| cellBlock[row][col] = n; | |
| } | |
| bool isBlock(int row,int col) { | |
| if (cellBlock[row][col] == 1) return true; | |
| else return false; | |
| } | |
| void setAllCellPress() { | |
| for (int i = 0; i < edge; i++) { | |
| fill(&cellPress[i][0], &cellPress[i][0] + edge, 1); | |
| } | |
| } | |
| void setPress(int row,int col,int n) { | |
| cellPress[row][col] = n; | |
| } | |
| bool isPress(int row, int col) { | |
| if (cellPress[row][col] == 1) return true; | |
| else return false; | |
| } | |
| int getBomb(int row,int col) { | |
| return bomb[row][col]; | |
| } | |
| int getBombAround(int row,int col) { | |
| return bombAround[row][col]; | |
| } | |
| void reset(int edge,int bombnumber) { | |
| for (int i = 0; i < this->edge; i++) { | |
| delete[]bomb[i]; | |
| delete[]bombAround[i]; | |
| delete[]cellPress[i]; | |
| delete[]cellBlock[i]; | |
| } | |
| delete[]bomb; | |
| delete[]bombAround; | |
| delete[]cellPress; | |
| delete[]cellBlock; | |
| this->edge = edge; | |
| this->bombnumber = bombnumber; | |
| setInit(); | |
| } | |
| bool isEnd() { | |
| int count = 0; | |
| for (int i = 0; i < edge;i++) { | |
| for (int j = 0; j < edge;j++) { | |
| if (bomb[i][j] == 1 && cellBlock[i][j] == 1) { | |
| count++; | |
| } | |
| } | |
| } | |
| if (count == edge) return true; | |
| else return false; | |
| } | |
| void show() { | |
| cout<<"edge" << edge << endl; | |
| for (int i = 0; i < edge;i++) { | |
| for (int j = 0; j < edge; j++) { | |
| cout << bomb[i][j] << " "; | |
| } | |
| cout << endl; | |
| } | |
| cout << endl; | |
| for (int i = 0; i < edge; i++) { | |
| for (int j = 0; j < edge; j++) { | |
| cout << bombAround[i][j] << " "; | |
| } | |
| cout << endl; | |
| } | |
| } | |
| ~minesweeper() { | |
| for (int i = 0; i < edge;i++) { | |
| delete[]bomb[i]; | |
| delete[]bombAround[i]; | |
| delete[]cellPress[i]; | |
| delete[]cellBlock[i]; | |
| } | |
| delete[]bomb; | |
| delete[]bombAround; | |
| delete[]cellPress; | |
| delete[]cellBlock; | |
| } | |
| }; |
全站熱搜
留言列表
